Pre-engineered steel building Dubai: cost and lead times
A pre-engineered steel building in Dubai usually lands between AED 550 and AED 700 per sqm for a clad, insulated warehouse shell, and takes 8 to 12 weeks from approved shop drawings to practical completion. Span, eaves height and coating spec move that figure far more than the steel tonnage alone.
Why work with APEX STEEL WORKS L.L.C
- Google rating of 5.0 from 32 customer reviews
- Steel fabrication, stainless steel, GI welding and lathe work handled in house
- Projects delivered across the UAE, from Dubai to Abu Dhabi, Sharjah and the northern emirates
- Shop drawings, fabrication and site erection run by one team
- Direct workshop line on WhatsApp and phone at +971 52 270 9796
The workshop handles the full chain: detailing, cutting, welding, surface treatment and erection. If you are comparing suppliers, the steel fabrication and structural steel guides on the blog walk through tonnage rates, coatings and site practice in more detail.
I’m really happy with the work done by Apex Workshop. They are very professional, knowledgeable, and pay attention to even the smallest details. alhaf malik, 5 stars
What a PEB is and when it beats hot-rolled structural steel
A PEB is a steel frame designed as a repeatable system, with tapered built-up columns and rafters, cold-formed purlins and girts, and a bolted connection set produced from shop drawings. It beats conventional hot-rolled steel whenever the building is a simple rectangle, the clear span sits between 15 and 40 metres, and programme matters more than architectural complexity.
Hot-rolled steel is still the right call for crane gantries, multi-storey frames, irregular geometry and suspended floor loads above roughly 10 kN per sqm. A pre-engineered steel structure UAE clients order for a warehouse is nearly identical to one ordered for a workshop or a labour block, which is why the system repeats so cheaply. For a distribution shed, a labour accommodation block or a showroom shell, the PEB route is usually cheaper per sqm and weeks faster on site.
PEB cost in Dubai: price per sqm and a worked 1,200 sqm example
PEB building Dubai pricing sits at about AED 260 to AED 380 per sqm for frame-only supply and erection, and AED 550 to AED 700 per sqm for a clad and insulated warehouse shell. Civil works, the slab, doors, MEP and authority fees are quoted separately.
Worked example, 1,200 sqm warehouse shell in Dubai South
| Item | Basis | Amount (AED) |
|---|---|---|
| Primary frame, columns and rafters | 42 tons at AED 5,600 per ton | 235,200 |
| Secondary members, purlins, girts, bracing | 18 tons at AED 4,300 per ton | 77,400 |
| Roof and wall sheeting | 2,050 sqm at AED 92 per sqm | 188,600 |
| Rockwool insulation, 50 mm | 1,800 sqm at AED 36 per sqm | 64,800 |
| Anchor bolts, base plates, grouting | lump sum | 18,000 |
| Shop drawings, delivery, touch-up paint | lump sum | 42,000 |
| Erection, crane and crew | lump sum, 4 weeks | 72,000 |
| Total | about AED 582 per sqm | 698,000 |
The example assumes a 30 m clear span, 8 m eaves, a gable roof and one 6 m roller shutter opening, and excludes 5 percent VAT. A site in Abu Dhabi or a Sharjah industrial zone can add AED 15 to 25 per sqm in transport and crane mobilisation. Frame rates follow the tonnage market, so check the current structural steel price per ton in UAE before you fix a lump sum.
Stainless steel doorsets are built to the same shop drawing discipline as a PEB frame.
Dubai approvals and permits for a PEB structure
A steel warehouse or showroom in Dubai needs a building permit from Dubai Municipality or, inside a free zone, from the zone authority. Dubai Development Authority (DDA) covers Dubai Silicon Oasis and the TECOM communities, Trakhees covers JAFZA and the Ports, Customs and Free Zone areas, and each has its own submission portal and drawing standards.
Fire and life safety sits with Dubai Civil Defence. Steel columns and rafters normally need a fire rating, achieved with intumescent paint or board protection, and the cladding system must meet the reaction to fire requirement for the building height and use. The contractor also needs a valid trade licence with the building contracting activity, registered with Dubai Department of Economy and Tourism (DET), before an authority will accept a submission in the contractor's name.
The sequence that avoids resubmissions:
- Structural design and load calculations stamped by a licensed engineer
- Shop drawings showing member sizes, connections and cladding layout
- Submission through the consultant to the municipality or zone authority
- Civil Defence review for fire protection and cladding
- DET contractor registration confirmation attached to the permit file
- Permit issued, then site mobilisation
Budget 2 to 4 weeks for the approval round when the drawings are complete.
Lead times from shop drawing approval to erection on site
Eight to twelve weeks is a realistic programme for a 1,200 sqm shell once drawings are signed off. The breakdown looks like this.
- Shop drawings and connection design: 7 to 10 working days
- Consultant and authority approval: 5 to 10 working days
- Fabrication of columns, rafters and secondary members: 3 to 5 weeks
- Surface preparation, painting or galvanising: 5 to 7 days
- Delivery to site and offloading: 2 to 4 days
- Erection, alignment, bolting and sheeting: 3 to 4 weeks
Longer spans, mezzanine floors and imported cladding profiles add time. Coastal or high humidity sites in Sharjah and Abu Dhabi usually mean hot dip galvanising for the frame, which adds about a week to the treatment stage. Readers planning a warehouse steel structure Dubai project can compare the same programme assumptions there.
PEB vs conventional steel for warehouses, labour camps and showrooms
The right frame type depends on span, load and how repeatable the building is.
- Warehouse: PEB wins. Clear spans to 40 m, fast sheeting and a low dead load on the slab. A 1,200 sqm shell typically comes in 15 to 25 percent below a hot-rolled frame.
- Labour accommodation: PEB wins on speed. Two and three storey blocks are built as braced frames with cold-formed floor joists, repeated block after block across a site.
- Showroom: mixed. Long clear spans suit a PEB, but a glass frontage and architectural fascia usually need a secondary fabricated steel facade frame.
- Crane bay inside a warehouse: hot-rolled wins. A 10 ton overhead crane needs a heavier column section and a fatigue checked bracket detail.
How to choose a PEB supplier in Dubai
Ask for four things before you sign: fabrication capacity in tons per month, the coating system, who owns the erection crew and crane, and what the warranty actually covers. A supplier that subcontracts erection will not control your programme.
- Fabrication capacity and current order book, so the delivery date in the quotation is real
- Coating spec: hot dip galvanising for coastal and humid sites, epoxy or polyurethane paint for internal frames
- In-house erection crew and crane arrangements rather than a hired gang
- Written warranty, commonly 10 years on the structure and 5 years on the coating
- Documentation pack with mill certificates, weld maps and inspection reports
We are a steel fabrication and structural steel contractor in the UAE working across all seven emirates, with fabrication, stainless steel, GI welding and lathe work under one roof. If you are shortlisting a steel building supplier Dubai has plenty of, ask to visit the fabrication shed before you sign.
Excellent service and very good work. The quality was great, and the price was one of the best I found. Romosh Al Eyoun, 5 stars

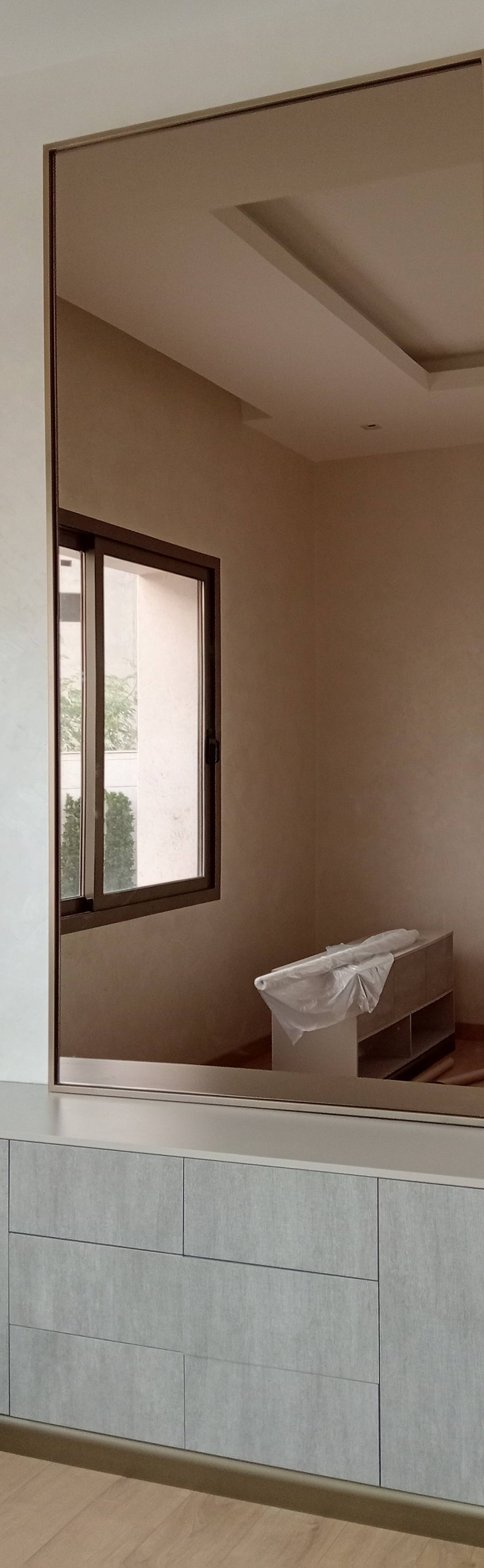

Interior fit out follows the steel shell, cladding and fire protection sign off.
Frequently asked questions
How much does a pre-engineered steel building cost in Dubai?
A frame-only PEB warehouse is roughly AED 260 to AED 380 per sqm supplied and erected in Dubai. A clad and insulated shell comes in at AED 550 to AED 700 per sqm. The 1,200 sqm example above totals about AED 698,000 before VAT, excluding slab, doors and MEP.
How long does a PEB building take to build in Dubai?
Once shop drawings are approved, fabrication through to erection runs 8 to 12 weeks for a 1,200 sqm shell. Authority permits and Civil Defence review add 2 to 4 weeks before that. Galvanised frames, mezzanines and imported cladding push the programme longer.
Do I need Dubai Municipality approval for a PEB warehouse?
Yes. A building permit is required from Dubai Municipality, or from the free zone authority such as DDA or Trakhees if the plot sits inside a zone. Dubai Civil Defence reviews fire protection and cladding, and the contractor must hold a DET trade licence with the building contracting activity.
Is a PEB cheaper than conventional hot-rolled steel in Dubai?
Usually yes, by about 15 to 25 percent on the frame for a simple rectangular building, and it is faster because members arrive pre-drilled and bolted. Hot-rolled steel becomes competitive when you need heavy crane brackets, multiple floors or irregular geometry.
Can a PEB structure be used for a labour camp or a showroom?
Yes. Labour accommodation is commonly built as repeatable PEB blocks up to three storeys, and showroom shells use the same frame with a secondary steel facade for glazing and signage. Showrooms need the fire rating and cladding approval checked early in design.
